3D Channel Letter Signage in Chennai
Individually crafted, LED-lit 3D letters — the signature look of premium brands.
The Showroom-Grade Signage Standard
Channel letters are individually fabricated three-dimensional letters, each housing its own LED lighting. Walk past any major bank, mall or car showroom in Chennai and you're looking at channel letters — they project depth, quality and permanence in a way flat boards simply can't.
RP Signage fabricates channel letters in stainless steel, aluminium, galvanized iron and premium cast acrylic, with laser-cut precision on every curve. Choose the lighting style that suits your building facade and brand personality.
Lighting Styles
- Front-lit — the letter face glows; bold and highly readable
- Halo / back-lit — a soft glow radiates around each letter on the wall; subtle and premium
- Side-lit & combination — distinctive looks for standout facades
- Non-lit metal letters — brushed steel elegance for daytime-focused brands
Built To Impress, Built To Last
Every letter set is powder-coated or polished, sealed against weather, and mounted with concealed, safe wiring. We handle complete fabrication and installation for showrooms, malls, banks, hotels and corporate buildings across Chennai, Kanchipuram, Chengalpattu, Tiruvallur.
How a Channel Letter Is Built
A channel letter is not cut from a sheet — it is a small fabricated box, and there are three parts, each of which can be specified up or down.
- The return — the side wall giving the letter its depth, usually 3 to 5 inches. Aluminium coil or stainless steel, rolled and welded to the letter shape.
- The face — acrylic for front-lit letters, or solid metal for halo-lit. Trim cap edges the acrylic and holds it to the return; we fabricate with trim cap in-house.
- The back — the sealed rear plate carrying the LED modules and wiring. Where water gets in on badly built letters.
Each letter is separately wired and individually weatherproofed, then mounted either directly to the wall or onto a raceway — a concealed backing channel carrying the wiring for the whole set. Raceways are the usual choice when a landlord will not allow many wall penetrations, and they keep alignment perfect across a long name.
Sizing Letters for the Distance
The most common mistake on a large facade is ordering letters that suit the wall rather than the viewing distance.
A workable rule: every inch of letter height gives roughly 10 feet of comfortable reading distance. Letters that must be readable from 200 feet down the road need to be about 20 inches tall. For traffic moving at speed, add a margin — a driver has a fraction of the time a pedestrian does.
We work this out during the site survey by standing where your customers actually first see the building, not by scaling the artwork to fit the available wall.
Typical Sizes
- 6–12 in — mall units, interior signage, small frontages
- 12–24 in — most standalone showrooms and offices
- 24–48 in — building facades and rooftop signage
- 48 in + — high-rise and highway-visible installations

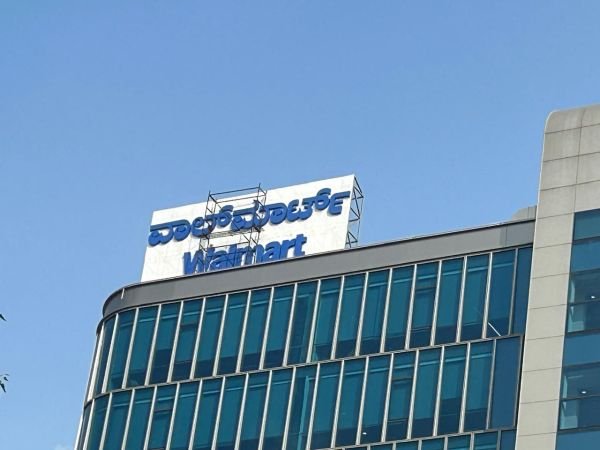

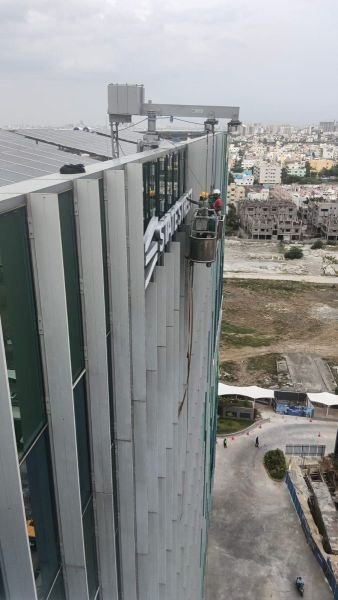

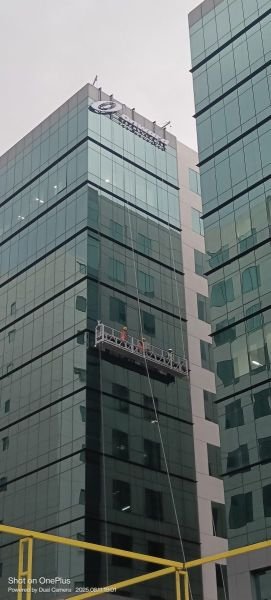

Working at Height
A meaningful share of our channel letter work is on rooftops and upper facades, and that changes the job from fabrication into a rigging and safety exercise.
We plan access before quoting — suspended platform, boom lift or scaffolding — because it affects both the price and the schedule far more than the letters themselves. Rooftop installations also need structural fixing into the parapet or a dedicated frame, wind load accounted for at that height, weatherproofed cable entry, and safe isolation for future servicing.
It is worth asking any signage supplier how they intend to reach the installation position before accepting a quote. A price that seems low for high-level work usually has not included access equipment.
Materials and Finish
- Aluminium returns — light, corrosion resistant, the standard for most work
- Stainless steel — heavier and more premium; 316 grade near the coast
- Galvanised iron — economical for large non-lit letters
- Cast acrylic faces — UV-stable, so colours stay true
- Powder coating — any RAL colour, matt or gloss, baked rather than sprayed on site
Brand colour matching matters here. We match to your brand reference rather than approximating from a printout, because a slightly wrong corporate colour is obvious to everyone who knows the brand and impossible to fix without refinishing the whole set.
Frequently Asked Questions
What are channel letters?
Channel letters are individually fabricated 3D letters — usually metal or acrylic — each with its own internal LED lighting. They are the standard for showrooms, malls, banks and corporate branding.
What lighting styles are available?
Front-lit (face glows), halo/back-lit (soft glow around each letter on the wall) and side-lit. We help you choose based on your building facade and brand style.
What materials do you use for channel letters?
Stainless steel, galvanized iron, aluminium and premium cast acrylic — chosen for durability, finish and your budget.
